Hard Candy Production Line

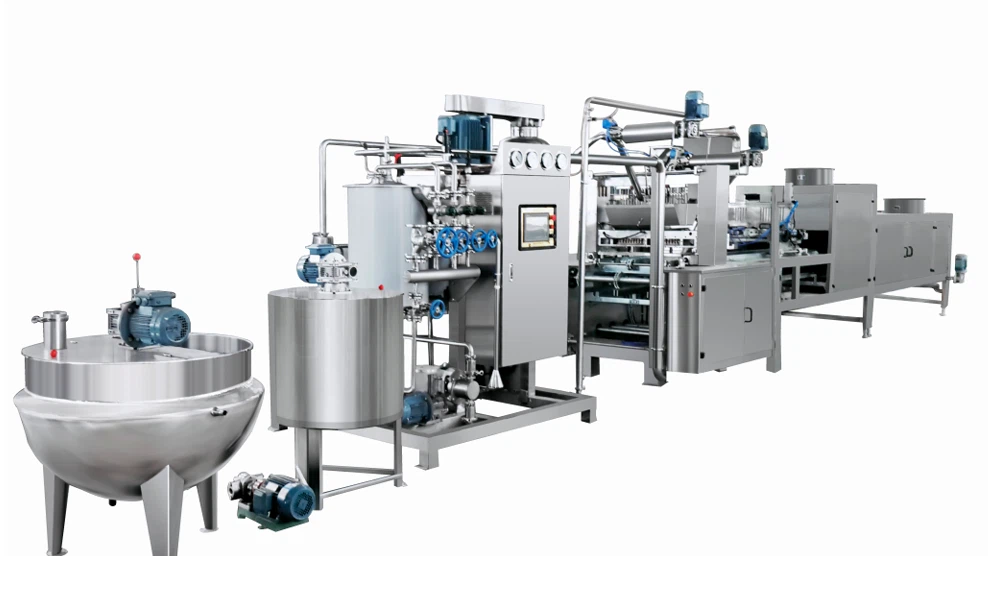

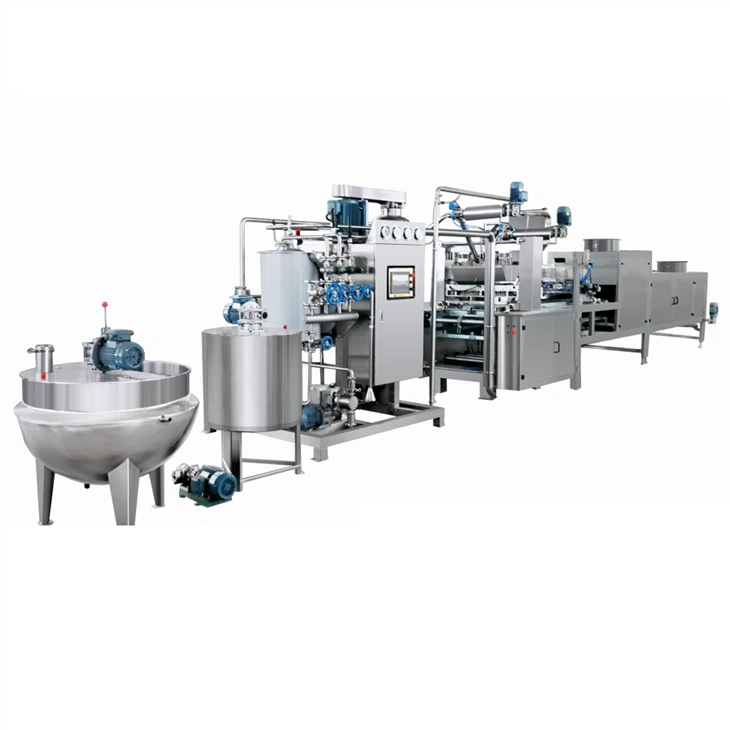

KHRT-180 Automatic Hard Candy Production Line – Industrial-Grade Core Equipment for High-Temperature Cooking & Molding



This production line is an industrial-grade fully automatic equipment designed for large-scale hard candy production, following the real hard candy process logic of "high-temperature cooking → vacuum concentration → stretching homogenization → cooling & molding", which is different from the gel pouring mode of gummy candies.



Suitable for producing multi-category hard candies such as fruit hard candies, milk-flavored hard candies, filled hard candies, and transparent hard candies, it reduces the moisture content of sugar to ≤3% through high-temperature cooking at 150-160℃, and uses stretching homogenization technology to ensure crispy texture and stable shape of finished products. With a production capacity of 120-150kg/h, it is the core choice for food enterprises to build standardized hard candy production lines.

1. Raw Material Pretreatment: White sugar, glucose syrup and other raw materials are screened to remove impurities, accurately measured and mixed according to the formula;
2. High-Temperature Cooking: Mixed raw materials are injected into a vacuum cooking pot, cooked at 150-160℃, and vacuumized to remove moisture at the same time, cooking time 15-20 minutes;
3. Vacuum Concentration: Vacuum degree -0.08~-0.09MPa, concentrating the moisture content of sugar to ≤3% to avoid sanding and sticking of finished products;
4. Flavoring & Coloring: Adding food flavoring and coloring, stirring quickly and evenly (hard candy flavoring must be completed in the high-temperature stage to ensure flavor integration);
5. Stretching Homogenization: The sugar is repeatedly stretched by a stretching machine to make the molecular structure uniform, improving the crispy texture and luster;
6. Cooling & Molding: Cooling to 60-70℃ through cooling rollers (avoiding cracking due to excessive temperature difference), then molding by mold pressing or extrusion cutting;
7. Post-Processing: The molded candies are further cooled to room temperature by a cooling conveyor belt, and defective products are screened out to complete pre-packaging finishing.

1. RAW MATERIAL PROCESSING & COOKING UNIT

- Raw Material Screener (1 set): Stainless steel screen, screening accuracy ≥98%, processing capacity 200kg/h, power 0.75kw;

- Automatic Batching Machine (1 set): Formula storage function, batching error ≤±0.5%, mixing capacity 300L, power 3kw;

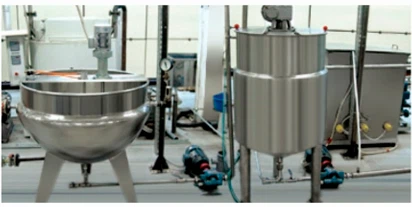

- 1000L Vacuum Cooking Pot (1 set): High-temperature resistant stainless steel material, cooking temperature adjustable 120-160℃, vacuum degree -0.08~-0.09MPa, total power 45kw (including heating + vacuum system).

2. FLAVORING & STRETCHING UNIT

- High-Speed Flavoring Mixer (1 set): High-temperature resistant design, stirring speed 300r/min, ensuring rapid integration of flavoring and coloring, power 2.2kw;

- Automatic Stretching Machine (1 set): Double-roller stretching structure, stretching speed adjustable 0.5-1.5m/min, improving sugar homogenization, power 7.5kw.

3. COOLING & MOLDING UNIT

- Multi-Roller Cooler (1 set): 4 sets of cooling rollers, controllable roller surface temperature, cooling efficiency ≥5℃/min, power 5.5kw;

- Hard Candy Molding Machine (1 set): Equipped with mold set (customizable shape), dual modes of compression molding/extrusion cutting, production speed 10-20m/min, power 4kw;

- Cooling Conveyor Belt (1 set): Length 8m, speed adjustable 0.8-2m/min, further cooling and setting, power 1.1kw.

4. Post-Processing Unit

- Finished Product Screener (1 set): Vibrating screening structure, screening accuracy ≥95%, removing defective products and debris, power 1.5kw;

- Dust Removal Finishing Machine (1 set): Removing sugar powder on the surface of candies, improving appearance cleanliness, power 0.75kw.

1. Process-Specific Adaptation: Focus on the core processes of hard candy high-temperature cooking and vacuum concentration, avoiding redundant gummy gel equipment, with more efficient process;
2. Stable & Controllable Taste: Precise cooking at 150-160℃ + vacuum concentration, moisture ≤3%, ensuring crispy finished products without sanding, high batch consistency;
3. Flexible Molding: Supports compression molding (round, square, special-shaped) and extrusion cutting (strip, granular), molds customizable;
4. Industrial-Grade Capacity: 120-150kg/h capacity, 1000L large-capacity vacuum cooking pot, adapting to large-scale production;
5. Safe & Durable: Food-contact parts are made of 316 stainless steel (high-temperature and corrosion resistant), core components adopt SIEMENS motors, stable operation;
6. Energy Optimization: The vacuum cooking system saves 30% energy compared to traditional atmospheric cooking, and cooling rollers use circulating water for cooling, reducing operating costs.

1. Professional Hard Candy Factories: Building standardized production lines, supplying supermarkets, convenience stores and bulk snack channels;
2. Large Food Enterprises: Expanding hard candy product lines, enriching the candy matrix (complementary to gummies and chocolate);
3. Leisure Snack Brands: Customizing own-brand hard candies (such as fruit-flavored, functional hard candies), controlling the entire production process;
4. Foreign Trade Food Enterprises: Producing hard candies according to international standards, adapting to export orders (complying with FDA/CE food hygiene requirements).

AFTER-SALE SERVICE:

1.Testing & training

The plant layout design, assembling and installation, start-up and local team training will be free at no cost. But the buyer should be responsible for the round-air tickets, local transportation, board & lodging, and US$40/day per person for the pocket money to our technicians. The testing people will be two persons, and will cost 30days.

2.Utilities

The buyer should prepare sufficient electric power, water, steam and compressed air supplies which are suitable to be connected to our machinery before the arrival of our machinery.

3.Warranty

The seller guarantees the quality of the products for 12months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery;

the seller will replace the parts or send the technicians to go to the buyer's site for repairing and maintenance for FREE. If the defaults are aroused by the defaulted operations of the buyer, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
